1000 Base Multi Mode fiber SFP Module 550m

MG-1000AMA V2

  Categoria: Networking e Cablaggio

Disponibilità da verificare in fase di ordine

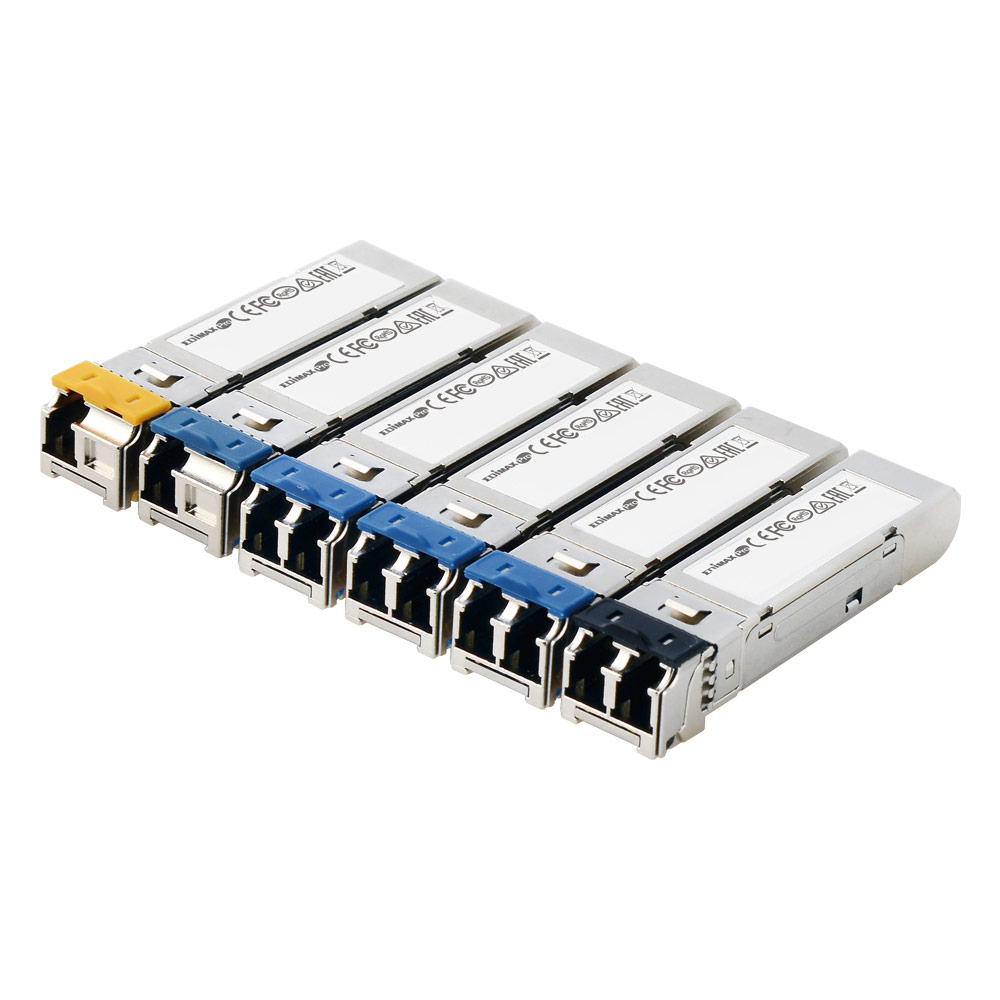

1000Base-T SX LX SFP Modules
MG-1000_Series_V2
  • ​Compliant with IEEE 802.3z Gigabit Ethernet and Fibre Channel Standard
  • Supports full-duplex
  • Plug-and-Play & Hot Pluggable
  • Supports Pull-or-Plug with power on switches
  • Power: Internal power from switches
  • Compliant with Small Form Factor Pluggable MSA
  • Compliant with Class 1 Laser International Safety Standard IEC 825
  • Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
The MG-1000 series V2 Small Form-Factor (SFP) Pluggable Gigabit Modules serve the purpose of extending network transfer distances. Attached to Edimax switches, the modules have the ability to extend distances to several kilometers or even tens of kilometers based on network demand, which in turn lowers costs. The MG-1000 series V2 SFP modules are also compatible with a large range of Gigabit Ethernet connectivity options for enterprise, data center and service provider applications.



PRODUCT INFORMATION
​
Model Number Wavelength Connector Type Media Power (dBm) Sensitivity Power Budget Distance Application
MG-1000AMA V2 850 nm LC MMF -3 to -10 -20 dBm  10.0 dB 550m Multi-Mode Fiber
MG-1000AMAI* 850 nm LC MMF -3 to -10 -20 dBm  10.0 dB 550m Multi-Mode Fiber
MG-1000AMB V2 1310 nm LC MMF  0 to 10 -20 dBm  10.0 dB 2km Multi-Mode Fiber
MG-1000AMBI* 1310 nm LC MMF  0 to 10 -20 dBm  10.0 dB 2km Multi-Mode Fiber
MG-1000AS1 V2 1310 nm LC SMF -3 to -9.5 -21 dBm  11.5 dB 10km Single-Mode Fiber
MG-1000AS1I* 1310 nm LC SMF -3 to -9.5 -21 dBm  11.5 dB 10km Single-Mode Fiber
MG-1000AS3 V2 1310 nm LC SMF -3 to -9.5 -24 dBm  21 dB 30km Single-Mode Fiber
MG-1000PU1 V2 T1310/R1550 LC SMF -3 to -9 -23 dBm  14.0 dB 10km Single-Mode Fiber
MG-1000PU1I* T1310/R1550 LC SMF -3 to -9 -23 dBm  14.0 dB 10km Single-Mode Fiber
MG-1000PD1 V2 T1550/R1310 LC SMF -3 to -9 -23 dBm  14.0 dB 10km Single-Mode Fiber
MG-1000PD1I* T1550/R1310 LC SMF -3 to -9 -23 dBm  14.0 dB 10km Single-Mode Fiber
*Industrial Grade SFP, supports robust design for enhanced reliability in industrial grade, operating temperature: -40oC~85oC
​


APPLICATION DIAGRAM

Edimax Pro 1G 1000Base-T/SX/LX SFP+ Modules
